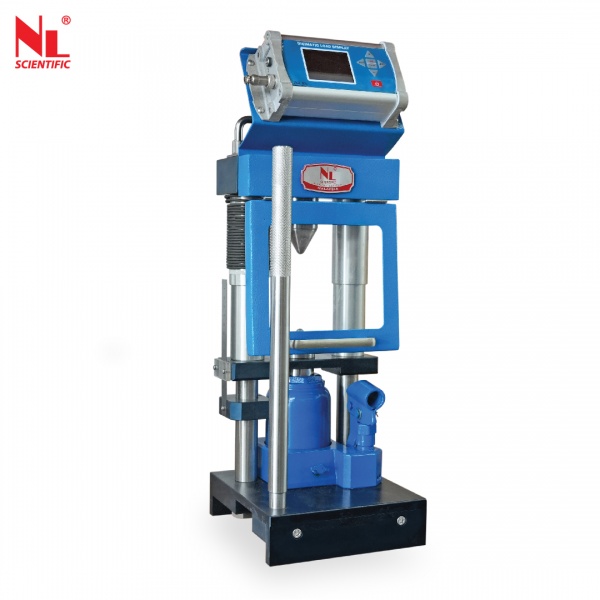

Digimatic Point Load Tester 50kN (Australia STD) NL 1012 X / 009
SKU : #PD2094-DIGI
Product Description
A Digimatic Point Load Tester (PLT) is a reliable testing apparatus designed to determine the strength values of rock specimens in both laboratory and field-testing applications. The unit consists of a rigid load frame equipped with manually operated hydraulic jack for controlled load application. The apparatus incorporates a high accuracy load cell and a fine resolution reading control unit to ensure precise measurement results. This tester is widely used in mining operations, geotechnical engineering, research, and education.
Applications and Features
Introducing our digimatic Point Load Tester:
- Equipped with safety cover for protection.
- Digital display for real-time load monitoring.
- Equipped with a rubber grip lifting handle.
- A ruler attached on the frame allows for direct measuring specimen diameter.
Technical Specifications:
| Model Number | NL 1012 X / 009 |
| Max. Capacity | 50 kN x 0.001 kN Sensitivity |
| Max. Specimen Test | 90 mm Dia. |
| Platen Tip Radius (Top & Bottom) | 5 mm Spherical Tip Radius |
| Loading Conical Platen (Top & Bottom) | 60° Cone |
| Battery | 3000 mAh, rechargeable |
| Result Storage | 50 Test Results |
| Accuracy & Repeatability | ≤1.0 % F.S |
| Length/Material of Jack Handle | 390 mm / Stainless Steel |
| Product Dimension | 180 (L) x 190 (W) x 550 (H) mm |
| Packing Dimension | 300 (L) x 300 (W) x 700 (H) mm |
| Product Weight | 14 kg |
| Packing Weight | 25 kg |
Unit Consists Of:
| Model Number | Parts Description | Qty |
| NL 1012 X / 006 – P 001 | 50 kN S Type Load Cell c/w Cable | 1no. |
| NL DLD – 200 | Digital Load Display | 1unit |
| NL 1012 X / 006 – P 003 | Measuring Guide Plate | 1no. |
| NL 1012 X / 006 – P 006 | Conical Cone Set (Upper & Lower) | 1set |
| NL 1012 X / 009 – P 008 | Safety Cover | 1pc. |
| NL 1012 X / 006 – P 008 | Power Charger | 1no. |
| NL 1012 X / 009 – P 013 | Lifting Handle | 1no. |
