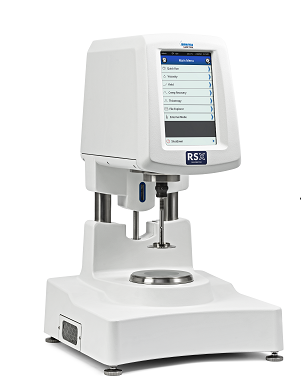

RSX Cone Plate Rheometer

SKU : #PD1984-RSX-

Advanced Rheometer for Controlled Shear Rate and Stress Measurements

AMETEK Brookfield RSX Cone Plate Rheometer is designed for precise, controlled shear rate (rpm) and controlled shear stress (torque) measurements. With its advanced features and user-friendly design, the RSX Cone Plate Rheometer is ideal for both sophisticated rheological analysis in R&D environments and straightforward quality control testing.

• Controlled Shear Stress/Shear Rate Operation:
  Precisely analyze flow behavior with controlled shear stress and shear rate settings, ideal for detailed rheological studies.



• Large User-Friendly Touch Screen:
  Navigate test parameters easily with an intuitive touch screen interface, enhancing user experience and operational efficiency.



• Quick Connect Coupling System:
  Simplify spindle attachment with a quick connect system, reducing setup time and ensuring secure connections.



• Auto Spindle Recognition:
  The spindle barcode feature automatically recognizes and sets the correct spindle, streamlining the testing process and ensuring accuracy.



• Automatic Spindle Gap Setting:
  Automatically detects and adjusts the spindle gap with standard one-piece spindles, eliminating manual adjustments and ensuring precise measurements.



• Small Sample Size:
  Conduct tests with minimal sample volumes, allowing for rapid setup and cleanup, making it ideal for labs with limited sample availability.



• Rapid Temperature Control:
  Achieve fast and accurate temperature regulation with Peltier or fluid-heated options, ensuring consistent test conditions.



• Rugged Design:
  Built to withstand the demands of the production floor, providing durability and reliability in harsh environments.



• Increased Torque Motor:
  Equipped with a powerful 200 mNm torque motor, this instrument is capable of testing tough samples, ensuring comprehensive analysis across a wide range of materials.

**Cone Spindles



• RCTO-25-1

  • Viscosity Range: 0.1019 – 815K Pa·s

  • Shear Rate: 0.06 – 6000 sec⁻¹

  • Max. Shear Stress: 48892 Pa

  • Sample Volume: 0.1 mL



• RCTO-25-2

  • Viscosity Range: 0.2037 – 1630K Pa·s

  • Shear Rate: 0.03 – 3000 sec⁻¹

  • Max. Shear Stress: 48892 Pa

  • Sample Volume: 0.2 mL



• RCTO-50-1

  • Viscosity Range: 0.0127 – 102K Pa·s

  • Shear Rate: 0.06 – 6000 sec⁻¹

  • Max. Shear Stress: 6112 Pa

  • Sample Volume: 1.0 mL



• RCTO-50-2

  • Viscosity Range: 0.0255 – 204K Pa·s

  • Shear Rate: 0.03 – 3000 sec⁻¹

  • Max. Shear Stress: 6112 Pa

  • Sample Volume: 2.0 mL



• RCTO-75-1*

  • Viscosity Range: 0.0038 – 30K Pa·s

  • Shear Rate: 0.06 – 6000 sec⁻¹

  • Max. Shear Stress: 1811 Pa

  • Sample Volume: 2.5 mL

        **For use with fluid heated instruments only.



• RCTO-75-2*

  • Viscosity Range: 0.0075 – 60K Pa·s

  • Shear Rate: 0.03 – 3000 sec⁻¹

  • Max. Shear Stress: 1811 Pa

  • Sample Volume: 5.0 mL
    **For use with fluid heated instruments only.

**Plate Spindles



• RPTO-25

  • Viscosity Range: 0.623 – 4.98 mil Pa·s

  • Shear Rate: 0.013 – 1309 sec⁻¹

  • Max. Shear Stress: 65190 Pa

  • Sample Volume: 0.5 mL



• RPTO-50

  • Viscosity Range: 0.039 – 311K Pa·s

  • Shear Rate: 0.026 – 2618 sec⁻¹

  • Max. Shear Stress: 8149 Pa

  • Sample Volume: 2.0 mL



• RPTO-75*

  • Viscosity Range: 0.0077 – 61K Pa·s

  • Shear Rate: 0.039 – 3927 sec⁻¹

  • Max. Shear Stress: 2414 Pa

  • Sample Volume: 4.5 mL
