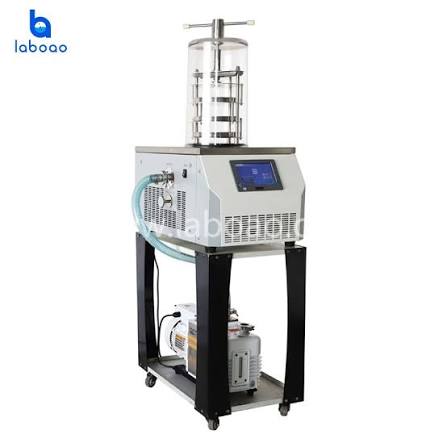

0.08㎡ Benchtop Top Press Lab Freeze Dryer
0.08㎡ Benchtop Top Press Lab Freeze Dryer 0.08㎡ Benchtop Top Press Lab Freeze Dryer

0.08㎡ Benchtop Top Press Lab Freeze Dryer

(0)
৳ 0

SKU : #PD1868-008M

DESCRIPTION

Freeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production ,etc. After the freeze drying process,a long term preservation for products is much easier. They can be restored to the original state and maintain their chemical and biological characteristics after being watered.

The vacuum freezing drying techinology, which is also called sublimation drying, is a technical method that freezes the samples in advance, and then sublimates its moisture in the vacuum state.

FEATURES

1. CFC Free refrigeration

2. LCD display drying curves, English interface

3. Big opening of condenser, condenser with pre-freezing function

4. low noise compressor, good efficiency,long service life

5. Condenser and operation panel are all stainless steel

6. Drying Chamber with organic glass is safe and visible

7. Shelf and tray are stainless steel, tray spacing can be customized

8. Small volume , easy and convenient operation

9. Nitrogen valve is optional

10. Eutectic point test device is optional

11. Communication interface is optional

12. Cascade refrigeration is optional , applied for -80℃ device



SPECIFICATIONS

Model

LFD-10B

Freeze drying   area

0.08㎡

Condenser   capacity

3-4 L /24h

Condenser   temperature

-56℃ (-80 ℃ optional)

Vacuum degree

≤5 Pa(airborne)

Material tray

Ф180mm , 3   layers

Bulk capacity

0.8L, 10mm   thickness

Host   dimensions(-56℃)

615*450*370mm

Host   dimensions(-80℃)

850*680*405mm

Vial capacity   Φ12mm

492pcs

Vial capacity   Φ16mm

297pcs

Vial capacity   Φ22mm

147pcs

Cooling

Air,draughty , ambient temperature≤25℃

Voltage

220V ,50 Hz; 110V,   50Hz; 110V, 60Hz

Power

970W
