Automatic Titrator TitroLine® 7800 with IDS socket | Potentiometry | Volumetry

Automatic Titrator TitroLine® 7800 with IDS socket | Potentiometry | Volumetry

(0)

SKU : #PD1753-AUTO

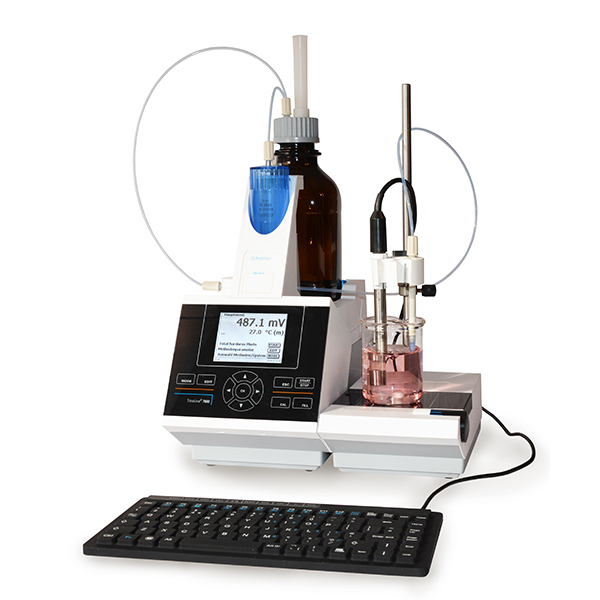

TitroLine® 7800: The TitroLine® 7800 is an automatic titrator for potentiometric titration and volumetric Karl Fischer titration. The Titroline® 7800 enhanced the universal features of the TitroLine® 7750 with an additional IDS measurement socket. Hence the TitroLine® 7800 can perform potentiometric titrations with analog and IDS electrodes up to volumetric KF titrations.

Variants
Art.-No.	Name	Description
285220980	TL 7800	Basic unit with 2 measurement inputs without exchangeable head, without magnetic stirrer, with stand rod, keyboard, titration clamp Z 305, hand controller TZ 3880, power supply 100-240 V
285220990	TL 7800-M1	Basic unit with 2 measurement inputs without exchangeable head, with magnetic stirrer TM 235, with stand rod, keyboard, titration clamp Z 305, hand controller TZ 3880, power supply 100-240 V
285221030	TL 7800-TitriSoft	Basic unit with 2 measurement inputs without exchangeable head, with magnetic stirrer TM 235, with stand rod, keyboard, titration clamp Z 305, hand controller TZ 3880, power supply 100-240 V, Software TitriSoft 3.5X

Highlights:

High visibility, full color display that can be easily viewed from a distance and at extreme angles
Reagent data is securely stored in the intelligent and interchangeable modules
Includes up to three USB, one LAN and two RS232 ports for expansion and connection of devices
Export the results as PDF or CSV, also to networks
Automatic wireless recognition of SI Analytics ID electrodes guarantee accurate calibration and measurements
High resolution pH/mV-electrode and temperature inputs for pH, ISE, redox (ORP) or photometric titrations
Second digital measuring socket for intelligent digital pH-, conductivity, ORP sensors (IDS)
Perfect for non-aqueous titration such as acid and base numbers in oils (TAN and TBN)
Polarizable electrode input for set endpoint titrations („Dead-stop“ + KF)
Linear (fixed increment) and dynamic equivalence point titration mode and titration to endpoints
pH Stat titrations
Volumetric KF titrations
Single and continuous measuring function
Formula editor for individual calculations
User management/password
Titrations with the new photometric sensor OptiLine 6
Dosing with up to two connected piston burettes per method
Titration with external piston burette

The titration software TitriSoft 3.5 is the optimum solution for your titration tasks. The software can be used with Windows 10 and 11 and supports your daily work procedures during sample preparation, titration and evaluation of the results. The software has been developed to be clear, logical and user-friendly.

TitroLine®	7800 (all variants)
Measuring input 1 (analog)	pH/mV-input with 24 bit transducer. Electrode socket according to DIN 19 262 or BNC with RFID receiver for SI Analytics ID electrodes
Measuring range pH/accuracy	- 3.0… 18.00 / 0.002 +/- 1 digit
Measuring range mV/accuracy	- 2000…2000/ 0.1 +/- 1 digit
Measuring input µA	μA-connector for double platinum electrodes, connection: 2 x 4 mm - sockets), polarisation voltage variably adjustable
Measuring input temperature	Connector for Pt 1000 / NTC 30 KOhm ( connection: 2 x 4 mm - sockets)
Measuring range temperature	Pt 1000 - 75…195 °C / NTC 30 KOhm - 40 …125 °C
Measuring input 2: (digital), IDS	Digital input for teh connection of IDS-sensors (pH, mV, conductivity)/ accuracy depends on teh connected sensor
pH	0.000…14.000+/- 0.004
mV	+/- 1200 +/- 0.2
Temperature °C	- 5.0…105 +/- 0.2
Conductivity	0.00…2000 mS/cm +/- 0,5% from measurement value
Interfaces	3 × USB (2 x USB-A and 1 × USB-B), 2 × RS-232-C and 1 x LAN
Interchangeable burettes	5, 10, 20 ml or 50 ml intelligent interchangeable burette head
Resolution (Steps)	20.000 steps
Dosing accuracy	according to DIN ISO 8655, part 3: accuracy: < 0.15 %, precision: < 0.05 - 0.07 % (in dependence of the used burette size)
Display	3.5 inches - 1/4 VGA TFT graphic color display with 320 x 240 pixels
Housing material	Polypropylene
Front keyboard	Polyester coated
Material interchangeable burettes	Valve: PTFE/ETFE; Cylinder: borosilikate glass 3.3 (DURAN®) hoses (FEP, blue)
Dimensions	15.3 x 45 x 29.6 cm (W x H x D), height with interchangeable head
Weight	2.3 kg for basic device, 3.5 kg für complete device with interchangeable head (with empty reagent bottle)
Ambient conditions	Ambient temperature: + 10 ... + 40 °C for operation and storage Humidity according to EN 61 010, Part 1: max. relative humidity 80 % for temperatures up to 31 °C, linear decrease down to 50 % relative humidity at a temperature of 40 °C
Power supply	100-240 V; 50/60 Hz, power input: 30 VA
CE-sign	EMC compatibility according to the Council Directive: 2004/108/EG; applied harmonized standards: EN 61326-1:2006 Low-voltage directive according to the Council Directive 2006/95/EG Testing basis EN 61 010, Part 1
