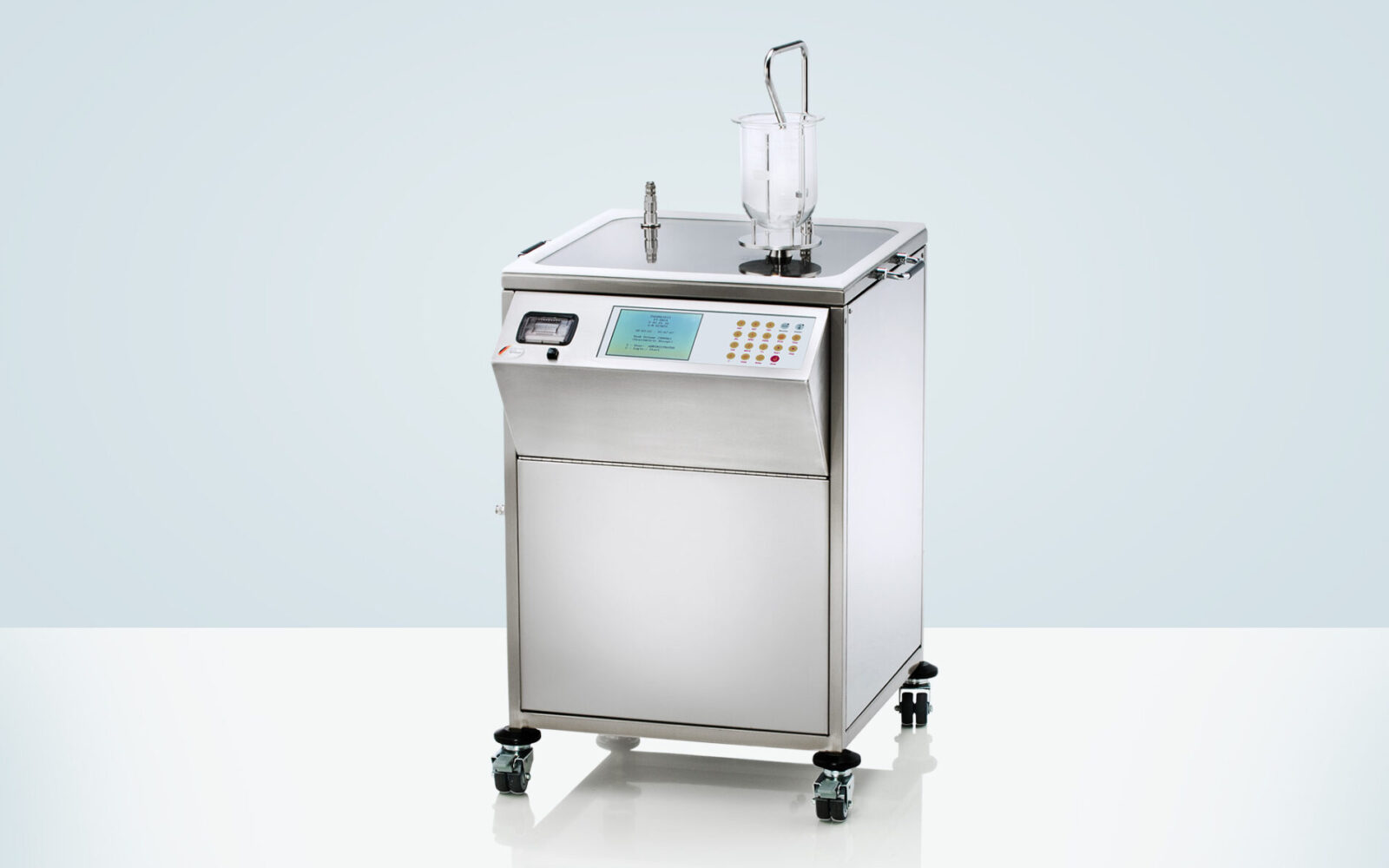

PT-DDS4 Reliable and handy lab companion to effectively degas, heat and precisely dose dissolution media

(0)

SKU : #PD1744-PT-D

Fully USP and EP compliant
De-aeration and heating of approx. 24 liters of media at the same time
Pre-heating of media; target temperature adjustable from 30 – 50°C
Adjustable gravimetric dosing range: 250 – 5,000 g
Adjustable volumetric dosing range: 250 – 5,000ml (optional)
Online buffer mixing, adjustable buffer dosing range: 100 – 5,000g (optional)
LC display and keypad to show and enter data, like product information, batch no., media density, etc.
Live information about the remaining tank volume; minimum 3 liter
File up to 16 de-aeration procedures (methods)
Built-in adjustment and calibration program for the digital load cell and flow-meter
Built-in thermal printer or network option to report the dosed media weight or volume and to document of adjustment and calibration results

De-aerates to approx. 35% of rest gas content (residual oxygen less than 5 ppm inside PT-DDS4 container)
Pre-heats your media to save time during start-up of dissolution tests
Fill-up program under pressure (connect directly to factory de-min. water supply)
Fill-up program under vacuum (prime from any external container)
Can be upgraded to de-aerate and dispense SPS foaming media
Can be used to directly dose into any vessel arrangement inside the dissolution bath
Special adapter to handle foaming media available (optional)
The instrument is movable and fits underneath most laboratory benches
Includes a balance (load cell) and all accessories for gravimetrical dosing
Good access to the media tank, easy to control the cleaning and test procedure
The only instrument which offers a software supported calibration program to validate and calibrate dosing accuracy using a certified 1 kg weight
Dosing performance test possible using built-in strain gauge
Correct dosing accuracy by entering density of media (changes because of temperature or solvent used)
Maximum of 2 liters waste when media change has to be done
Noise protected, max. noise level approx. 55dB
IQ/OQ documents included free of charge

Parameter	Specification
Dosing Range	250 – 5,000g – gravimetric method 250 – 5,000ml – volumetric method
Dosing Accuracy	±0.5% of selected volume – gravimetric method ±0.8% of selected volume – volumetric method
Tank Volume	Approx. 24 liter
Filling Volume	Not less than min. 10 liter
Dispensing Time for 1 Liter	Approx. 45 – 60 seconds
De-aeration and Heating Time	24 liters within approx. 30 – 45 minutes
Display	LED backlit LCD, 320×240 pixels, 9″ diagonal, approx. 90x120mm
Data Entry	Alpha numerical keypad
Method Memory	Store up to 16 methods
Printer	Thermo printer, 24 characters
Interface	RS232 port
Vacuum Level	0.4 bar absolute
Temperature Range	30.0 – 50.0°C
Temperature Accuracy	±0.5°C
Heater Capacity	900W
Calibration	Built-in calibration procedures for digital load cell (weight), digital flow meter (volume) temperature control
Height of Dispenser	130cm from ground floor
Space Requirements	550 x 700 x 900 mm (Length x Width x Height)
Packaging Dimensions	Approx. 1070 x 970 x 780cm (Length x Width x Height)
Net / Gross weight	Approx. 75 / 110 kg
Certification	All components certified to USP / EP requirements
CE / EMC Certification	All CE / EMC Certification provided
Validation	All IQ & OQ documents included

Volumetric dosing system
pH buffer dosing system
Upgrade kit for foaming media
Support stand to take up to 6 USP vessels
Full range of certified validation tools including DO² tester to read the amount of de-aeration available

Call for Price
