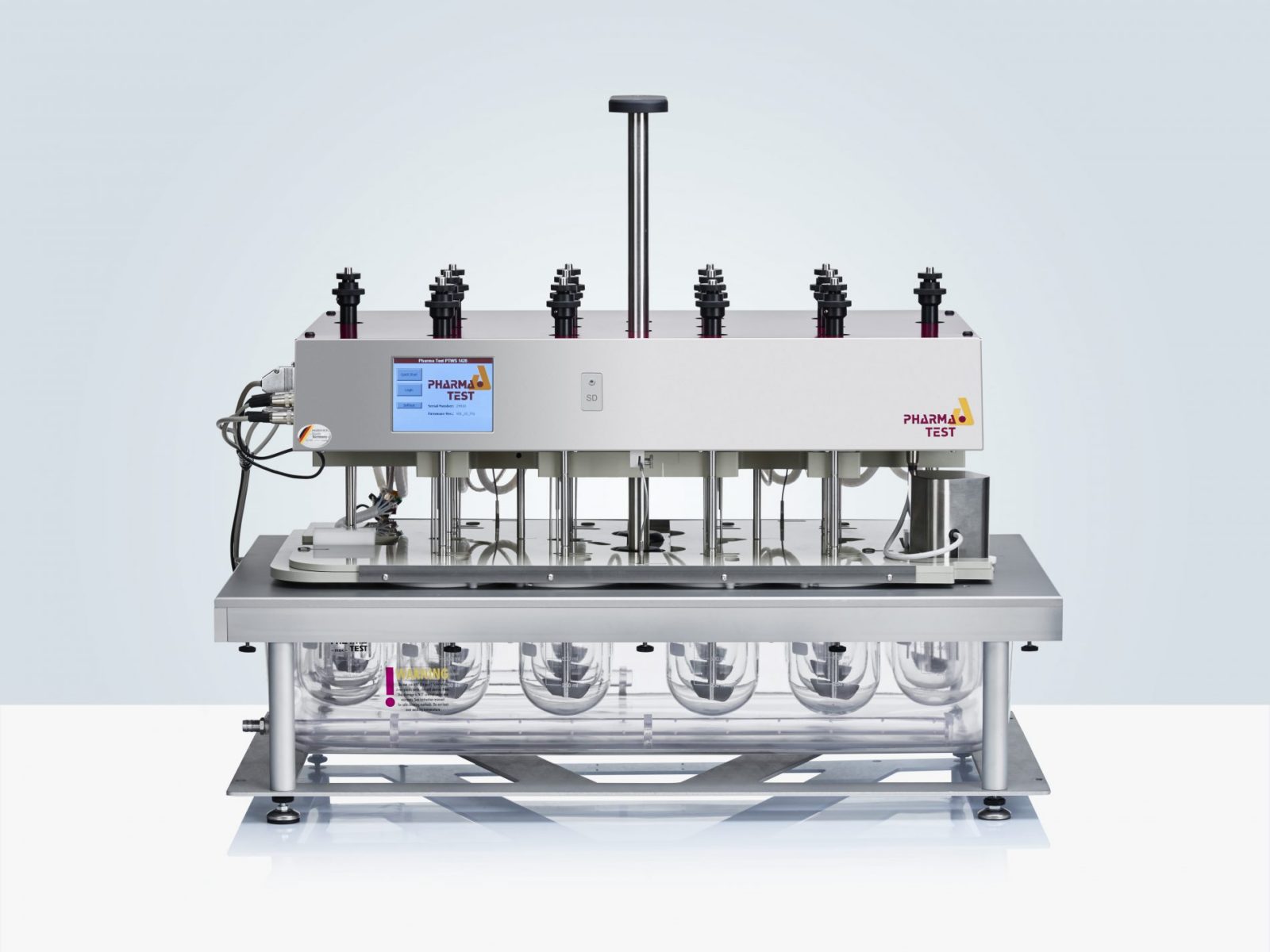

PTWS 1420 The new 14+2 station dissolution testing instrument – ideal for comparative studies such as biowaiver tests.

SKU : #PD1709-PTWS

The PTWS 1420 is a 14+2-position, “dual drive” compact tablet dissolution testing instrument for solid dosage forms as described in USP chapter <711/724> and EP section<2.9.3/4> as well as the BP, DAB and Japanese Pharmacopeia section <15>. The instrument features 14 testing positions and includes two additional standard size vessels for media refilling and reference standard media. PTWS 1420 features independent stirrer speed control for the left and right half of stirrers.

Features

• Automated temperature check and log at all sampling times

• Fully USP <711/724> and EP <2.9.3/4> compliant

• 14 stirred vessel positions, 2 additional heated vessels for replacement media

• Dual drive configuration with two stirrer motors

• CAN Bus technology offering instrument suitability check prior to start of a test run

• Staggered start capability

• Vessel low evaporation sealing covers

• Removable water bath for easy cleaning

• Drainage tap to empty the bath

• Method management and user administration

• User access control

• Optical and acoustic signals to inform about sampling intervals,

• Timer count down function

• Traffic Light optical information on display shows the instrument status by different colors (green = ready to use, yellow = preparing to use, red = error encountered)

• OQ, PQ interval warning with programmable interval

• Interfaces: USB port for remote control of the PTWS 1420, RS232 port to connect serial devices, I/O port for remote control of external instruments in automated applications, like DSR-M, pumps

• Calibration menu for stirrer speed, bath temperature and moreand PTFC-16

Advantages

• 14 stirred vessel in one instrument is ideal for Biowaiver applications and offline automated systems

• Dual drive configuration with independent speed control for left and right side of instrument enables flexible use of the PTWS 1420

• Replacement media is stored in two additional heated vessels eliminating influences from cold media refilling

• Easy to use auto vessel centering system

• Screen saver functionality offers most important information at a glance (stirrer speed, bath temperature, time to next sampling interval, elapsed time, media temperature etc.)

• Wake up functionality to start heating at a pre-programmed time

• Programmable infinity test

• MonoShaft™ system to avoid re-adjustment of immersion depth after tool exchange

• Staggered start feature for convenient manual sampling

• Water diffuser for even temperature distribution

• IQ/OQ documents included free of charge

Technical Specifications

Included in the Standard Scope of Supply

• One set of 14 stainless steel paddles

• One set of 16 batch coded 1000ml Borosilicate glass vessels

• One set of depth adjustment balls

• One bottle of ALGEX water preservative

• Comprehensive documentation folder including:

  • User manual

  • DQ/QC instrument compliance test certificate

  • IQ documentation

  • OQ documentation

  • Instrument logbook

  • Compliance certificates for vessels and stirring tools

Data Sheet Download Click here

Options

• Direct control of peripheral instruments via I/O port such as PTFC-16 fraction collector or DSR-M Dissolution Sampling Robot

• EPE-1420 automated sampling manifold that automatically moves into the programmable sampling position at the programmed intervals

• TMA-1420 automated tablet drop magazine to ensure simultaneous insertion of up to 14 samples

• ITM-1420 individual temperature measuring device with individual temperature probes to automatically measure the vessel temperatures of all 14 vessels while sampling

• 250 ml Mini Vessel set incl. mini paddle stirrers

• Amber colored vessels for UV sensitive test materials

• Full range of MonoShaft™ stirring tools available

• Full range of certified validation tools available

• Cleaning system for sampling probes and tubing featuring magnetic holders

• PT-RP80 serial report printer
