PT-DR Dispersion Releaser – Release Apparatus for Nano- and Microformulations

SKU : #PD1707-PT-D

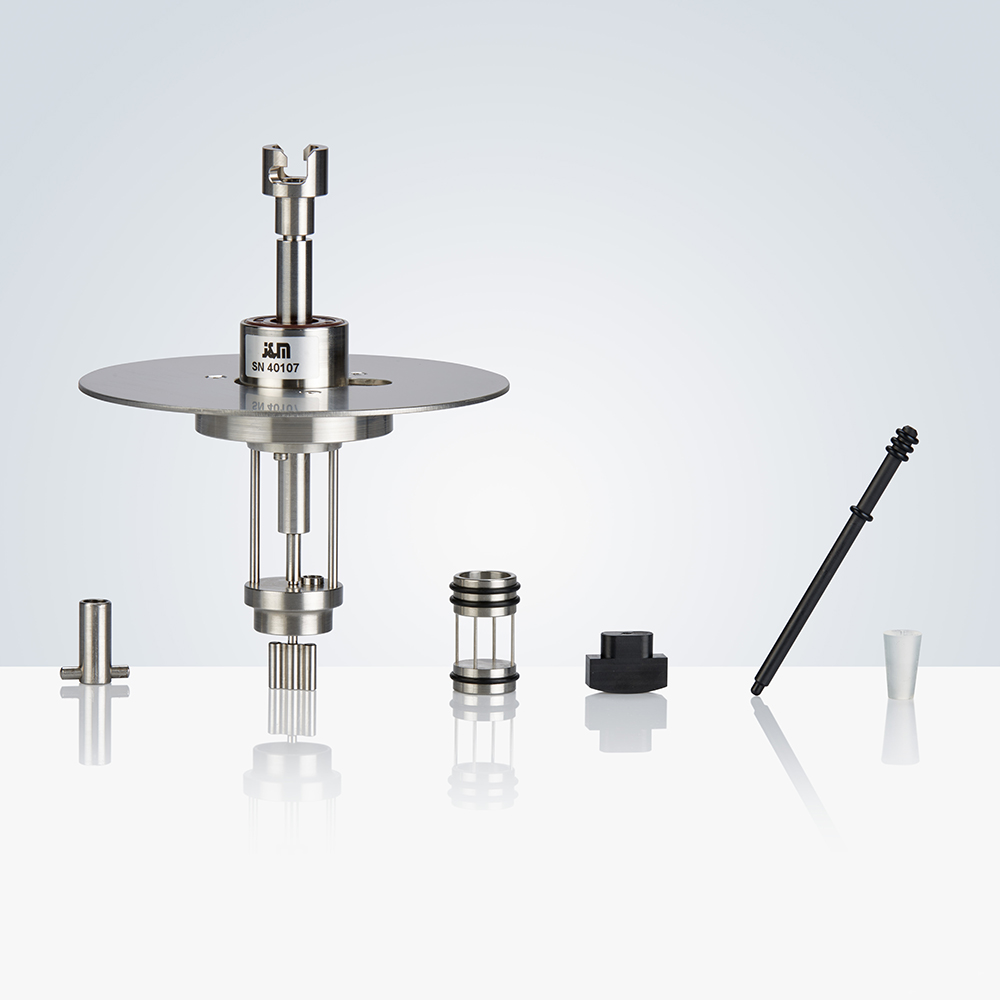

The Dispersion Releaser PT-DR is a dialysis-based apparatus for the release testing of nanomedicines, microformulations and semi-solid dosage forms within a standard dissolution tester. It is composed of a sample holder cell serving as the donor compartment for dispersed dosage forms. A dialysis membrane is disposed around this housing. This donor chamber is agitated by a paddle stirrer that is connected to the USP Apparatus 2.

Features

• Providing a uniform, constant and reliable release of the active substance which leads to reproducible results

• Tube membranes with a width between 26-32 mm can be used

• Typical materials for membran are cellulose ester and regenerated cellulose

Advantages

• Reproducible release through the additional stirring movement in the donor compartment

• Increased throughput of the dialysis process

• Mixing inside the donor and the acceptor compartment for an optimal homogeneous suspension

Included in the Standard Scope of Supply

• PT-DR with mounting tool for the membrane (part. no. 318-5010)

Data Sheet Download Click here
