PTB 500 NICE 5-in-1 Semi-Automated Tablet Testing System with Integrated Balance

SKU : #PD1611-PTB-

PTB 500 NICE

Semi-Automated Tablet Testing System with Integrated Balance

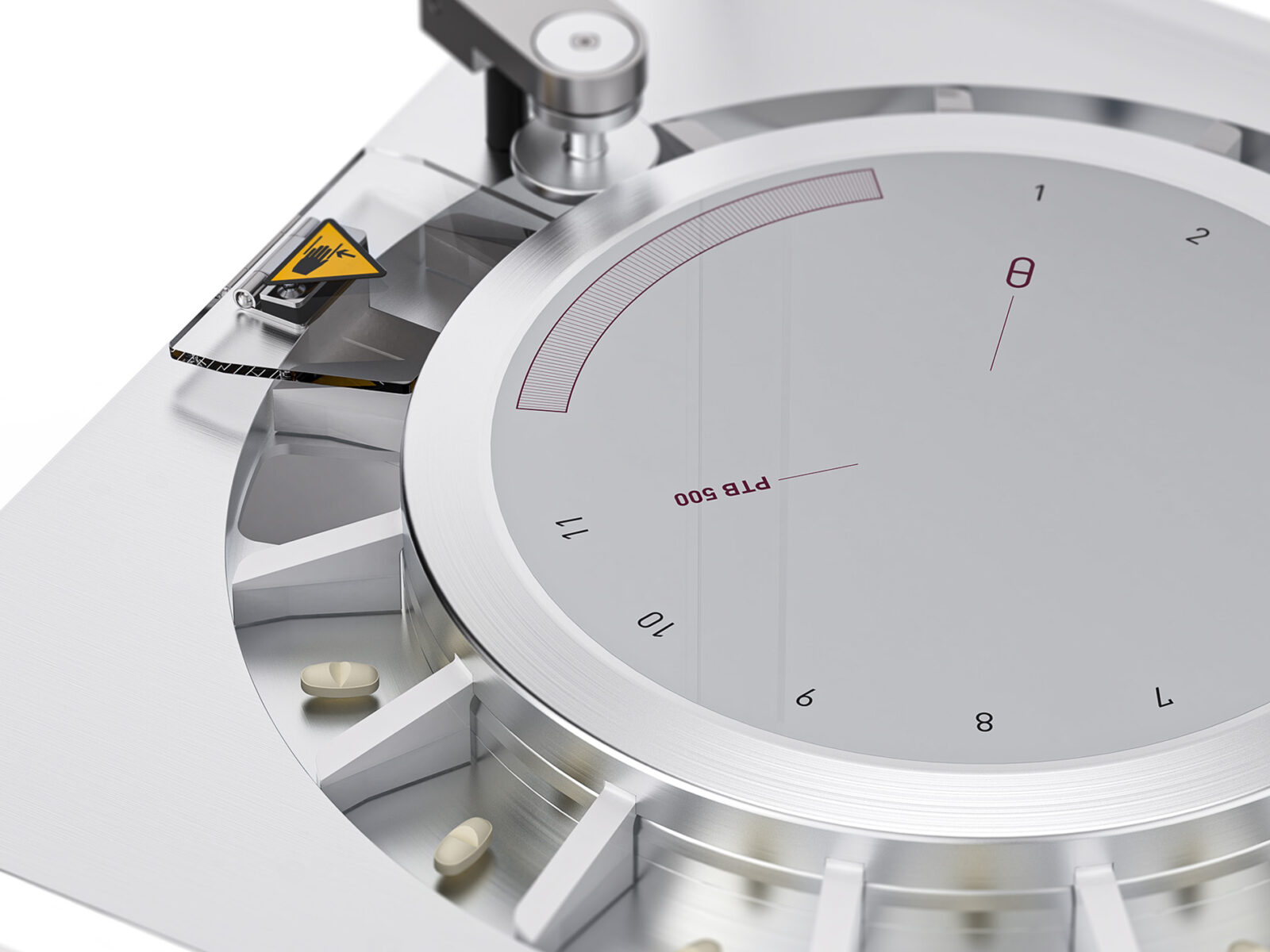

The semi-automated tablet testing system PTB 500 NICE is a dual test mode instrument to measure five different parameters of one sample. Hardness, diameter (or length), thickness, width and the weight of tablets can be determined here. The instrument features an integrated analytical balance and a sample carousel. The instrument is made in strict compliance with the EP <2.9.8> and USP <1217> Pharmacopoeia.

Features

• Tablet hardness testing in full compliance to USP <1217> and EP <2.9.8> Pharmacopeia

• 5 results of the same sample: thickness, width, diameter (length), hardness and weight

• Dual force mode instrument with linear speed increase and linear force increases modes

• Statistical calculations of mean value, absolute and relative standard deviations, minimum and maximum result

• Networking capabilities

• Multiple point validation procedure built-in

• Programmable print-out of force increase curve

• Graphical user interface with clear operator instructions

Advantages

• Select either linear force or linear speed increase (dual mode selection)

• Stepless adjustment of the force or speed increasing rate

• Sophisticated user management and method management

• Result database and audit trail

• Secure passwords with password rules

• Time and date display and print-out

• Test start functionality to start testing with minimal preparation

• Directly connectable to LIMS or other network options

• Serial data transfer via RS-232 interface

• Validation and calibration program for the measurement stations

• Dual point adjustment of the load cell for the hardness test station

• Multiple point validation (calibration) up to 30 or 50kg

• Programmable print-out of force increase curve

• Test program for soft gelatin capsule testing by setting up a testing distance

Technical Specifications

Included in the Standard Scope of Supply

The PTB 500 NICE comes ready to use with the following standard scope of supply:

• Broken sample collector

• Comprehensive documentation folder including:

  • User manual

  • QC/DQ testing certificate

  • IQ documentation

  • OQ documentation

  • Conformity Declaration

  • CE/EMC Declaration

  • Instrument logbook

Data Sheet Download Click here

Options

In addition to the standard scope of supply Pharma Test offers a broad range of accessories and options including:
» 500N (PTB 500 NICE-500) and 1,000N (PTB 500 NICE-1000) extended force range
» Recommended spare part set
» Full range of certified validation tools available
» Different splints for tablet guidance in test station via exchangeable bottom plates
