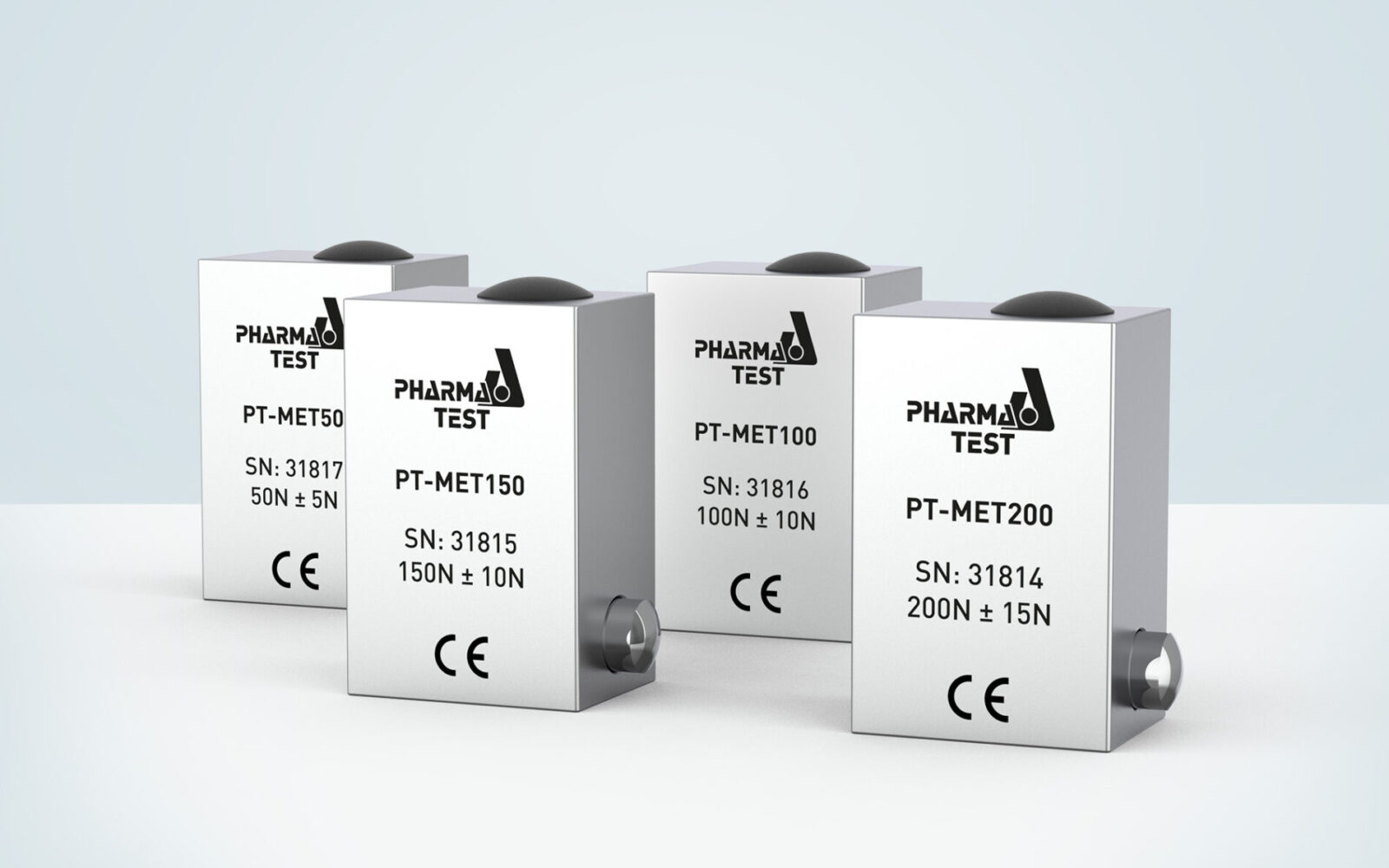

PT-MET Mechanical Tablet Set for Daily Verification of Tablet Hardness Testers
SKU : #PD1609-PT-M
PT-MET
Mechanical Tablet Set for Daily Verification of Tablet Hardness Testers
Quickly check the hardness measuring station of your Pharma Test PTB tablet hardness testers (or other vendor’s units) for correct operation at the beginning of each shift or day. Sometimes referred to as a “mechanical tablet”, our PT-MET set functions as a checking device which is used to simulate the breaking of a tablet at defined conditions.
Not replacing periodic calibration, the PT-MET set performs as a daily verification, much like a balance is checked at the start of each day and can be recorded in the instrument’s logbook. The PT-MET mechanical tablets come as a set of four or can be purchased individually. They come with a certificate of calibration, operating instructions and can be returned to us for re-calibration.
| Part No. | Description | Accuracy |
| 28-01000 | PT-MET Mechanical Tablet Set – 50, 100, 150 and 200N | – |
| 28-01050 | PT-MET50 Mechanical Tablet – 50N | ± 5N |
| 28-01100 | PT-MET100 Mechanical Tablet – 100N | ± 10N |
| 28-01150 | PT-MET150 Mechanical Tablet – 150N | ± 10N |
| 28-01200 | PT-MET200 Mechanical Tablet – 200N | ± 10N |
A set will come in a single case, individual units come in an individual case. Each unit is serialized. They are made in Germany.
Features
Available with four different nominal hardness values (50, 100, 150, 200N)
Each unit is serialized and is delivered with a calibration certificate
Available as a cost-effective set or individually
Used for quick routine checks, does not replace periodic calibration
Advantages
Quick check of the hardness measuring station of a Pharma Test instrument
Much easier to transport and store compared to calibration weights
Check your hardness tester in its standard operating mode
Technical Specifications
| Parameter | Specification | |||
| Nominal hardness value | 50N | 100N | 150N | 200N |
| Hardness accuracy | ± 5N | ± 10N | ± 10N | ± 10N |
| Unit dimensions | Approx. 33.1 x 22.0 x 45.0 mm (width x depth x height) | |||
| Unit weight | Approx. 220gr | |||
| Packaging dimensions (set) | Approx. 16.2 x 11.3 x 5cm (width x depth x height) | |||
| Net weight (set) | Approx. 1.0kg | |||
Standard Scope of Supply
PT-MET come ready to use with the following standard scope of supply:
PT-MET mechanical tablet, with individual serial number
Calibration certificate
Storage case
